Aardwolf Demountable Frame
Description
Description

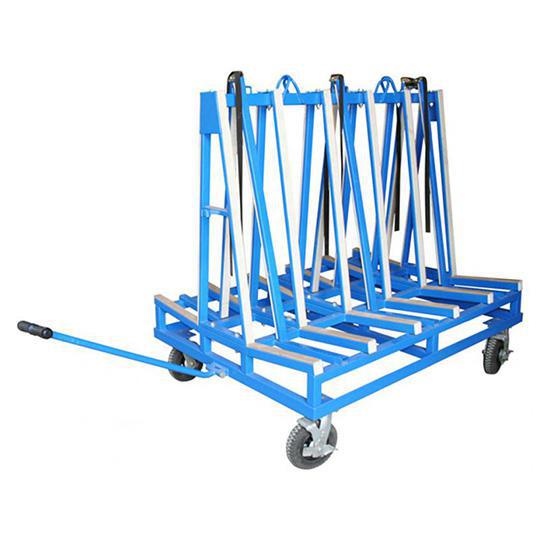

DFF200 Demountable Frame
General
This product is ideal for storing and transporting finished work both within the factory and to building sites. Many users prefer to have two A-frames for each base: one on their truck and one on the base in the factory. This system allows for the efficient transfer of materials. When the truck returns from a job, the empty frame can be swapped for a full one, ensuring continuous operation. Frames can be loaded onto the truck using a forklift or crane.
Features
- Sturdy and Safe Structure: Designed for secure transportation of materials.
- Protective Rubber Layer: Ensures materials are shielded from damage.
- Dual Hooking Points: Allows easy attachment to an overhead crane.
- Stick-Out Handle: Facilitates easy handling and transportation of materials.
Note: Customers can order the top frame and base frame separately
Specifications
|
Metric
|
Imperial
|
|
| Width of slab storage base area on each side | 300 mm | 11.8" |
| Working load limit per side | 500 kg | 1102 lb |
| Total working load limit | 1000 kg | 2204 lb |
| Net weight | 102 kg | 225 lb |
| Gross weight | 103 kg | 227 lb |
| Packaging dimension | L.1300xW.1020xH.240 mm | L.51.2"xW.40.2"xH.9.4" |

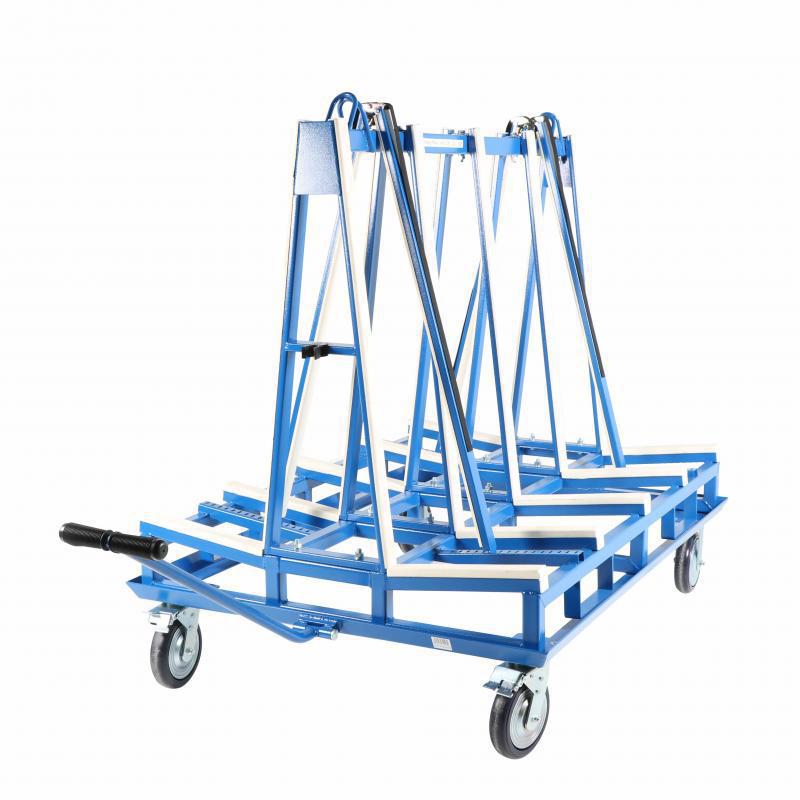

General
It is ideal for transporting and storing material within the factory or transporting material to building sites. Rubber is provided on frame surfaces for maximum protection. Heavy-duty wheels allow easy maneuvering of your fully loaded cart in the workshop and construction site. Fits inside a standard pick-up truck. Frames can be safely placed on your truck with a forklift or crane.
Features
- A sturdy structure is designed to eliminate any risk of the slab tipping over.
- Slabs are placed on unique rubber profiles and secured with 6 adjustable locking bars.
- Six locking bars per frame are mounted in slotted holes on the bottom.
- The frame features 2 hooking points to be picked up by an overhead crane.
- Built-in brackets on all underneath sides for forklift transport.
- Powder-coat paint finish.
Option: Frames can be hot galvanized and finished upon request.
Specifications
|
Metric
|
Imperial
|
|
| Width of slab storage base area on each side | 361 mm | 14.2" |
| Working load limit per side | 500 kg | 1102 lb |
| Total working load limit | 1000 kg | 2204 lb |
| Net weight | 127.5 kg | 281 lb |
| Gross weight | 128 kg | 282 lb |
| Packaging dimension | L.1560xW.1135xH.230 mm | L.61.4"xW.44.7"xH.9" |
