Aardwolf A Frame
Aardwolf A Frame - SAF02-S Stone Basic A Frame is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Aardwolf A Frame
Description
Description
Product Code: SAF02-S
General

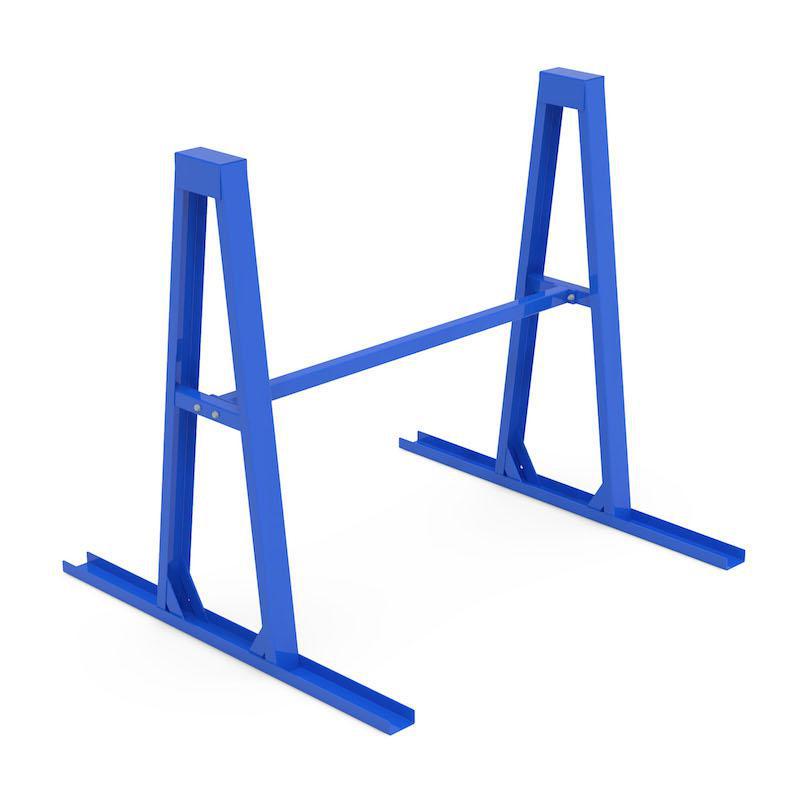

The Aardwolf ‘A’ Frame SAF02-S is a basic ‘A’ Frame for supporting natural and engineered stone slabs. 4”x2” C channel on the bottom allows timber gluts to be put into the channel if preferred. Steel cross member and fasteners included.
Features
- Steel construction.
- Full slab design.
- Sold and used as a set.
- 59″ (1500mm) height handles full slabs.
- Durable powder coat finish for weather protection.
- Holes in the base rail drain water to reduce corrosion.
- Working load limit: 12,000 kg (26,455 lb).
- Net weight: 53.8 kg (118,6 lb).
- Gross weight: 59 kg (130 lb)
- Packaging dimensions of the frame: L.1500 x W.200 x H.1640 mm (59.1"x7.9"x64.6").
Optional extra: Timber gluts for base.
Product Code: SAF01
General
Features
- Heavy-duty steel construction.
- Full slab design.
- Sold and used as a set.
- Store slabs on both sides.
- Durable powder coat finishes for weather protection.
- Holes in the base rail drain water to reduce corrosion.
- Rubber pads on the face of the vertical frame.
- The middle support bar connects each A-Frame end piece.
- 4 safety post 50 x 50 x 1400 mm (1.96"x1.96"x55.11") high strength posts.
Specifications
|
Metric
|
Imperial
|
|
| Working load limit | 15000 kg | 33069 lb |
| Net weight | 119.5 kg | 263.5 lb |
| Gross weight | 120 kg | 265 lb |
| Packaging dimension | L.1820xW.260xH.145(Base) mm L.1600xW.610xH.220(Frame) mm |
L.71.7"xW.10.2"xH.5.7" (Base) L.63"xW.24"xH.8.7" (Frame) |
General

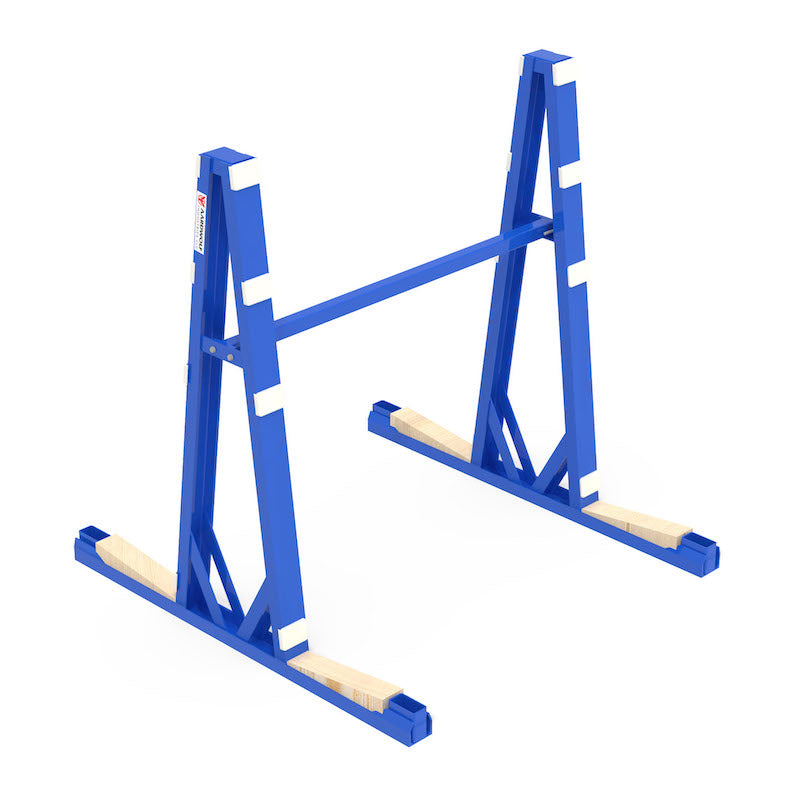

The heavy-duty Aardwolf ‘A’ Frame SAF03 has been designed to unpack slabs from wooden crates. Large angled, lacquered wooden gluts fitted in the base channel create a bias so that slabs fall towards the frame. Strong safety posts with sections 50x50 mm (2”x2”) at the rail ends protect workers in case of mishaps where the slabs tip away from the frame. In many jurisdictions, safety ‘A’ frames are a requirement of work safety policies and insurance policies when unloading crates containing large slabs. The ‘A’ frame Includes protective timber on the base rails and rubber cushioning material on the face of the uprights. Steel cross member and fasteners included.
Features
- Heavy-duty steel construction.
- Full slab design.
- Sold and used as a set.
- Store slabs on both sides.
- Durable powder coat finishes for weather protection.
- Holes in the base rail drain water to reduce corrosion.
- Rubber pads on the face of the vertical frame.
- The middle support bar connects each A-Frame end piece.
- 4 safety posts 50 x 50 x 1400 mm high strength posts.
- Working load limit: 15,000 kg (33,069 lb).
- Net weight: 102.5 kg (226 lb).
- Gross weight: 108 kg (238 lb).
- Packaging dimensions of the frame: L.1840 x W.220 x H.2000 mm (72.4"x8.7"x78.7").
Note: The safety posts are not included.
