Aardwolf Vacuum Glass Lifter
Aardwolf Vacuum Glass Lifter - ARGL-500DC DC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Aardwolf Vacuum Glass Lifter
Description
Description
General

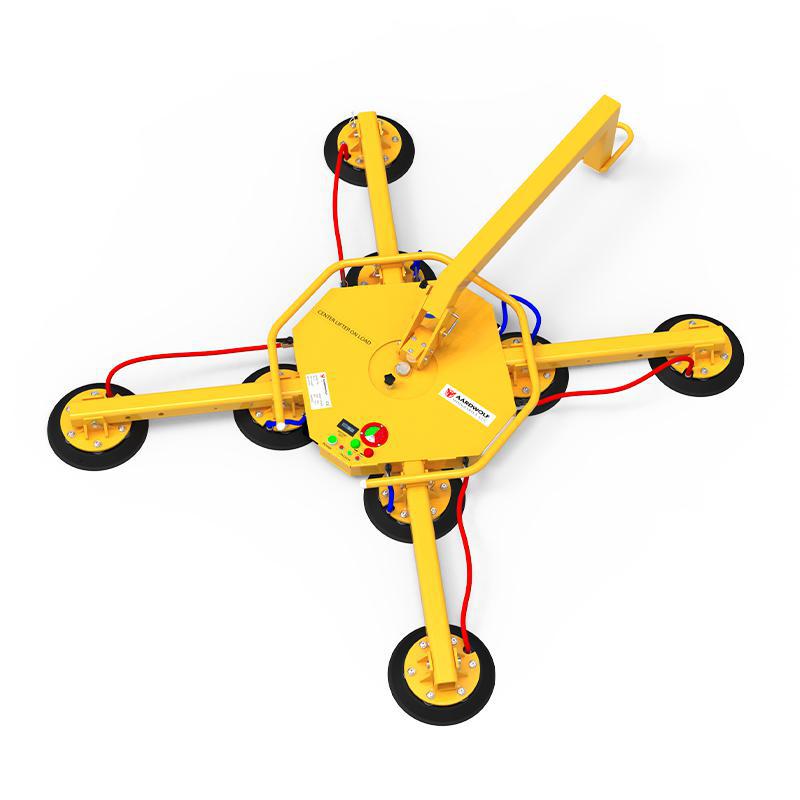

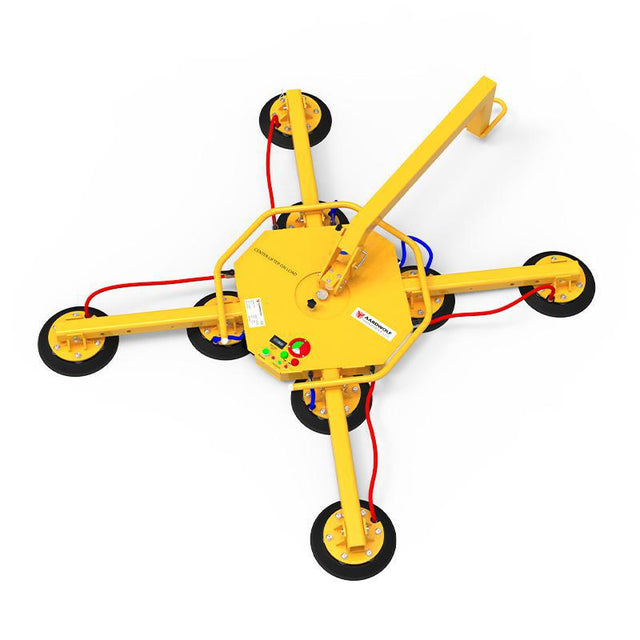

The DC Powered Vacuum Glass Lifter ARGL-500 is suitable for lifting and transporting glass elements of up to 500kg. This device can be used to install windows and large glass sheets with the aid of a forklift, counterbalance crane, or overhead hoist. On-board DC power systems provide cord-free operation at the job site. Movable vacuum pads and extension arms allow the DC-Powered Vacuum Glass Lifter - ARGL-500 to handle nearly every size and shape of the glass.
Features
- Spring-loaded vacuum pads.
- Manual rotation of 360° with 45° step.
- Manual tilting by 90° in a 15° grid.
- Removable arm - depth minimum 150mm.
- Integrated vacuum reservoir tank.
- Integrated instrumentation for monitoring the vacuum and the energy supply.
- Visual and audible warning devices.
- Self-contained 12-volt battery power supply with high capacity
- Extension arms allow the handling of large-sized sheets.
- Adjustable arms.
Specifications
|
Metric
|
Imperial
|
|
| Number of pad | 4 | - |
| Pad diameter | 300 mm | 11.8" |
| Working load limit | Vertical: 400 kg Horizontal: 500 kg |
882 lb 1102 lb |
| Net weight | 69 kg | 152 lb |
| Gross weight | 95 kg | 209 lb |
| Packaging dimensions | L.1070xW.970xH.450 mm | 42.1"x38.2"x17.5" |
- Battery information for the lifter
| Code battery | M12B6 Milwaukee |
| Type of battery | Lithium-ION |
| Voltage | 12V |
| Current | 6.0Ah |
| Quantity | 1 |
| Continuous operation time | 2 hours |
| Working time | 6 hours |
- Battery information for charger
| Code battery charger | C12C Milwaukee |
| Input supply voltage | 100-240VAC |
| Output voltage | 12V |
| Output current | 3.0Ah |
| Quantity | 1 |
| Fully charger time | 2.5 hours |
| Weight | 460 gram |
- Motor information
| Vacuum flow rate | 32.5 liters/minute |
| Motor | 12V DC-4A |
General
Features
- Double redundancy with a load capacity of 500 kg (1102 lb).
- Spring-loaded suction pads.
- 360-degree rotation with 45-degree steps.
- Manual tilting by 90° in a 15° grid.
- Four extension arms with the ability to extend and retract.
- Two independent vacuum circuits provide mutual aid in a system error.
- The automatic vacuum pumping system.
- Audio and visual warning system.
- 12V power supply by a high-capacity battery.
Specifications
|
Metric
|
Imperial
|
|
| Number of pad | 8 | - |
| Pad diameter | 300 mm | 11.8" |
| Working load limit | Vertical: 400 kg Horizontal: 500 kg |
882 lb 1102 lb |
| Net weight | 81 kg | 179 lb |
| Gross weight | 107 kg | 236 lb |
| Packaging dimensions | L.1070xW.970xH.450 mm | 42.1"x38.2"x17.7" |
- Battery information for the lifter
| Code battery | M12B6 Milwaukee |
| Type of battery | Lithium-ION |
| Voltage | 12V |
| Current | 6.0Ah |
| Quantity | 2 |
| Continuous operation time | 2 hours |
| Working time | 6 hours |
- Battery information for charger
| Code battery charger | C12C Milwaukee |
| Input supply voltage | 100-240VAC |
| Output voltage | 12V |
| Output current | 3.0Ah |
| Quantity | 2 |
| Fully charger time | 2.5 hours |
| Weight | 460 gram |
- Motor information
| Vacuum flow rate | 32.5 liters/minute |
| Motor | 12V DC-4A |
