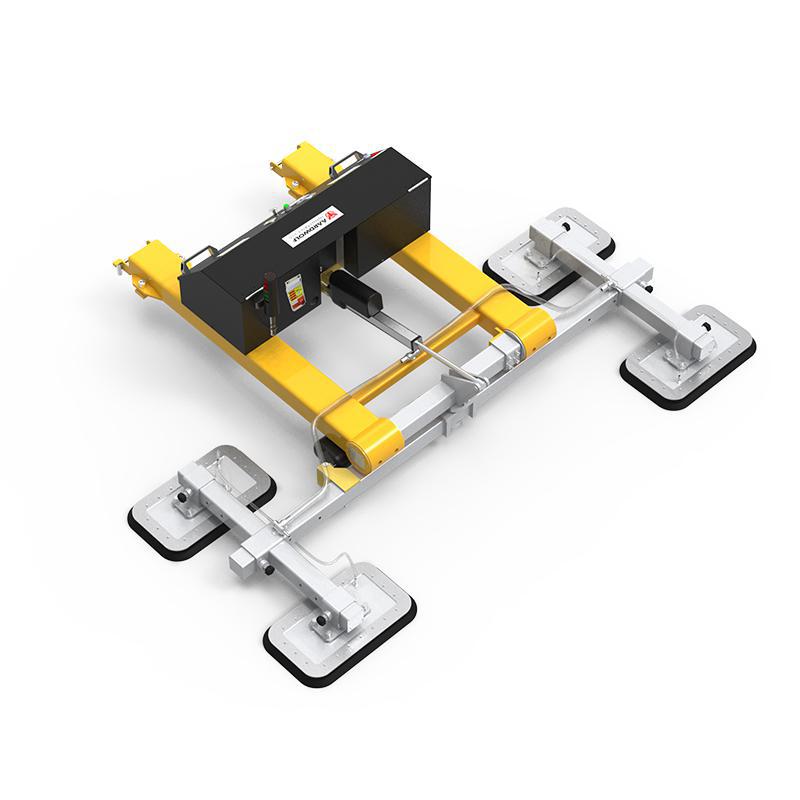

Aardwolf Fork Mounted Vacuum Lifting Attachment

$15,553.76 USD

Variant

FMVLA

Product variants

Description

Fork Mounted Vacuum Lifting Attachment

Product Code: FMVLA

General

The Fork Mounted Vacuum Lifting Attachment is designed to lift and lower sheet materials. The device combines a vacuum lifter with a fork truck and remote control for handling diversified types of sheet, plate, and large panels such as glass, stone, metal, concrete, plastics, timber, and laminates.

Features

Ability to turn 90 degrees through an electrically operated remote control.
Vacuum pads can be easily adjusted.
The pressure control system automatically activates the vacuum pump once the pressure exceeds the limit.
Operated by an Australian Standard AS4991-2004 battery.
Audio/visual safety system.
Integrated with a forklift through a safe chain system.
It provides versatile lifting that is cost-effective.
It is more versatile than magnets and more productive than clamps or slings.

Specifications

	Metric	Imperial
Length-width of sheet material	3000 - 2000 mm	118" - 79"
Pad sizes	Pad 300 mm Pad 520x320 mm	11.8" 20.5"x12.6"
Working load limit	Vertical: 760 kg Horizontal: 1000 kg	1676 lb 2204 lb
Net weight	275 kg	606 lb
Gross weight	360 kg	1200 lb
Packaging dimensions	L.2140xW.1650xH.580 mm	84.3"x65"x22.8"

Battery information for the device

Power supply	24V-100A battery
Charging requirements	24V-20A
Standby time	>100 hours
Charging cycle	1000 times
Charging time	5 hours
Non-stop working time	3 hours
6-month warranty

Motor information for the device

Model	THOMAS – VTE 10
Motor	24V AC – 30A
Flow	10 m³/h
Vac.	150 mbar abs
